ECLIPSE
EUROPEAN TILT AND TURN WINDOWS + DOORS

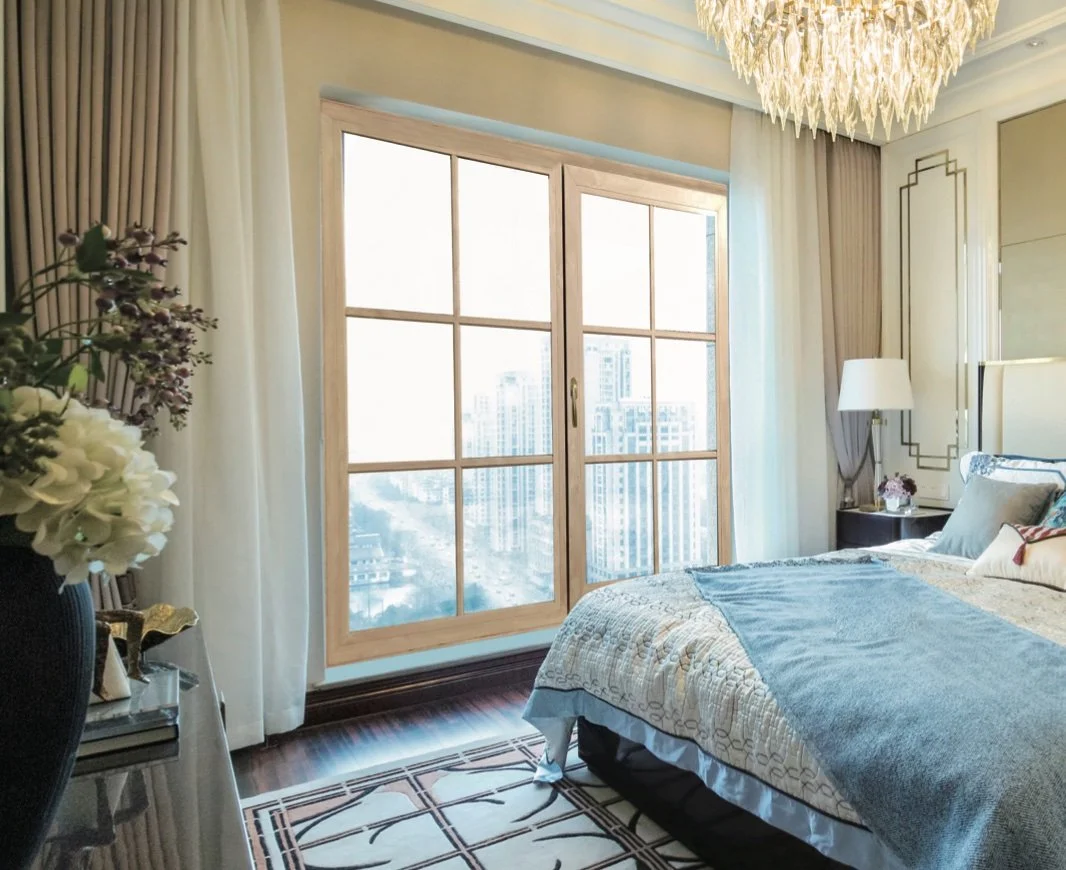

eclipse Windows
The Eclipse Series is an elegant system of European tilt and turn window and doors. German angle welding technology is applied to guarantee structural strength and overall energy efficiency.
All products are made to order. Contact us for more information on pricing and lead times.
-
Aluminum Vinyl hybrid profile
3” thickness
5 chambers
HFL (Holz Fenster) German welding technology
Double or triple pane low E insulating glass with 95% argon filled super spacer
Triple rubber sealing system with 15mm overlap
Scratch resistant wood grain foil inside
Powder coated aluminum cladding outside
Hidden hardware
High reduction of outsourced noise
Multi point locking system with high strength hardware
20 year service guarantee
3 year installation guarantee
-
Class R PG20: Size tested 79.5 x 109.5 in Type SHD (Side-hinged Door)
Class R PG960 (SI): Size tested 2019 x 2781 mm Type SHD (Side-hinged Door)
Positive Design Pressure (DP) = 960 Pa (20.05 psf)
Negative Design Pressure (DP) = -960 Pa (-20.05 psf)
Water Penetration Resistance Test Pressure = 290 Pa (6.00 psf)
Canadian Air Infiltration / Exfiltration = A3 Level
eclipse Patio Doors
Enjoy the same features and finishes of your windows to your patio doors.
All products are made to order. Contact us for more information on pricing and lead times.
-
Aluminum Vinyl hybrid profile
German Technology
thermally broken aluminum profile reinforcement
2 or 3 pane low-E insulating glass
Multiple Locking System
Triple Rubber Sealing System
High noise reduction
20 year service guarantee
3 year installation guarantee
-
Class R PG20: Size tested 79.5 x 109.5 in Type SHD (Side-hinged Door)
Class R PG960 (SI): Size tested 2019 x 2781 mm Type SHD (Side-hinged Door)
Positive Design Pressure (DP) = 960 Pa (20.05 psf)
Negative Design Pressure (DP) = -960 Pa (-20.05 psf)
Water Penetration Resistance Test Pressure = 290 Pa (6.00 psf)
Canadian Air Infiltration / Exfiltration = A3 Level
